Introducing Latest Enhancements to Slag Detection System (SDS)

We have made some exciting new enhancements to our Slag Detection System (SDS) and we are pleased to share with you all the latest improvements.

The Slag Detection System (SDS) is a continuous thermal imaging system, which provides accurate and timely detection of slag carryover during tapping or pouring of liquid steel and other metals, allowing plants to deliver improved yields, higher-quality products and a reduction in costly downstream additional processing.

The latest improvements include:

HIGHER RESOLUTION, 307,200 (640X480) PIXEL THERMAL

Allowing temperature measurement from more radiometric-calibrated points.

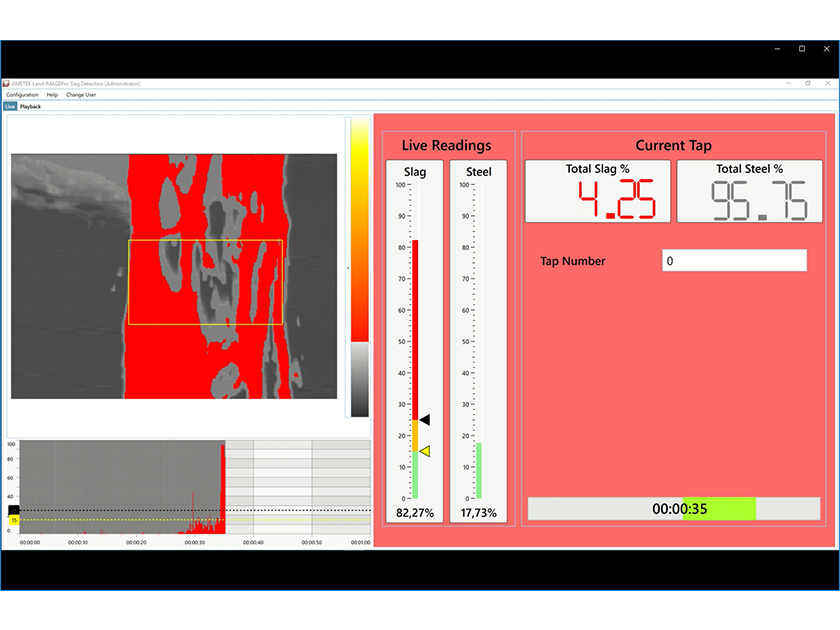

Slag Detection System and IMAGEPro






LARGER FIELD OF VIEW (12° X 9O°)

Giving a wider sight of the steel stream.

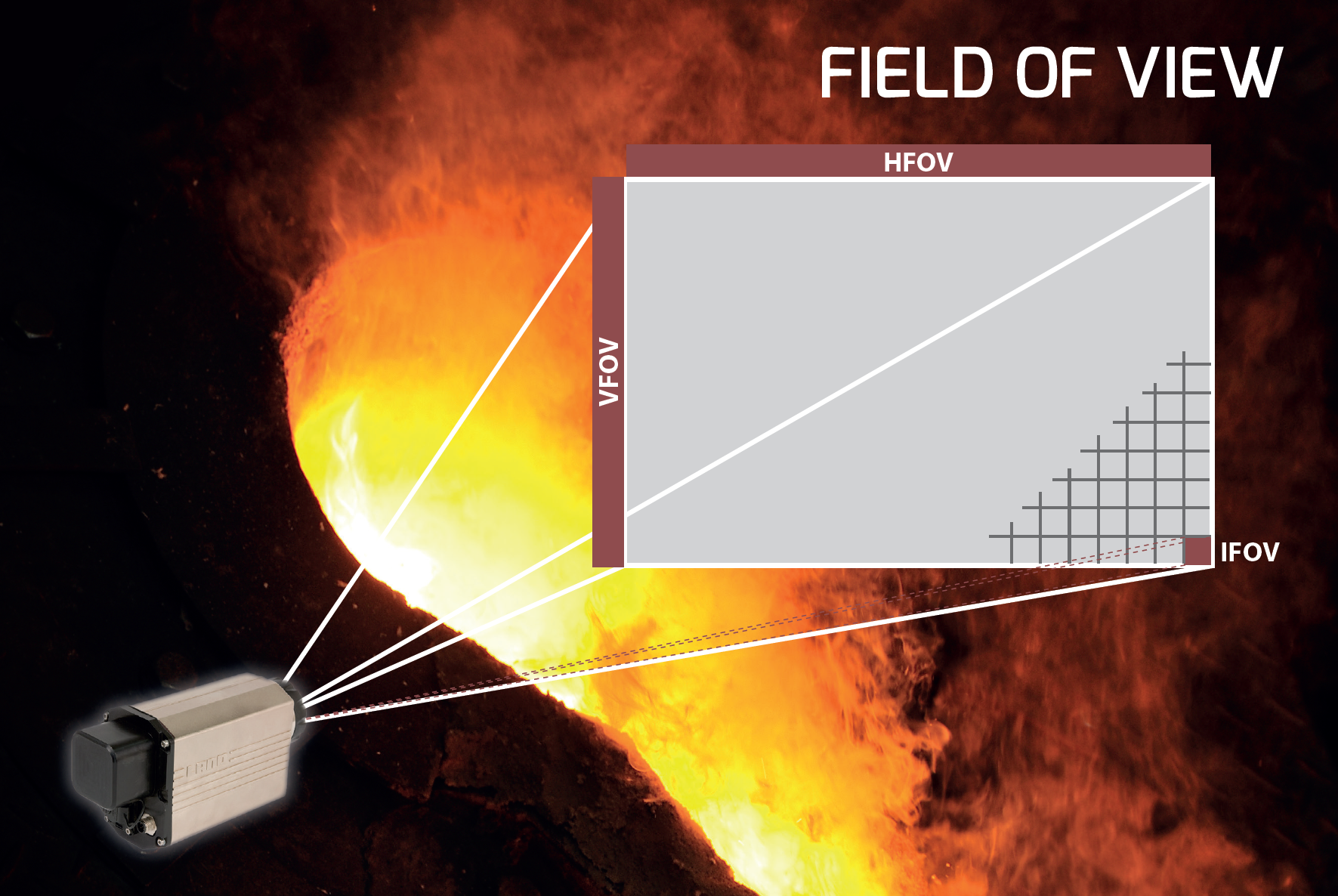

SDS 640 FOV









FASTER FRAMERATE

Detecting more detail in full frame mode.




SDS - Faster Framerate








IMPROVED HEAVY-DUTY MOUNTING AND ENCLOSURE

Suiting harsh industrial environments.

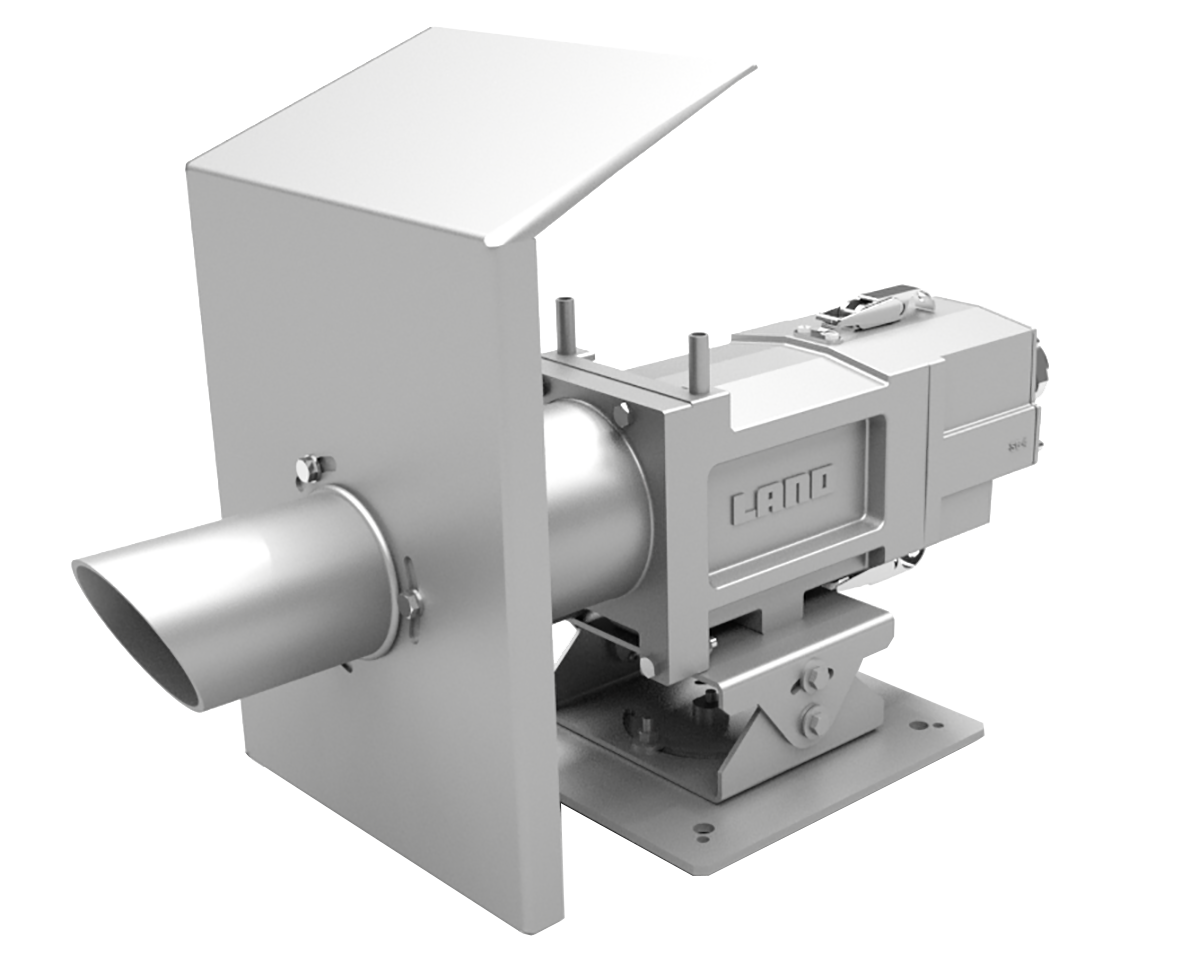

 SDS 3-4 View Front










ADVANCED SPECTRAL FILTERING

Providing a clearer view in environments where smoke is present.



SDS 640 Application










LATEST HARDWARE, I/O MODULES, AND DIGITAL INTERFACING

Meeting Industry 4.0 demands.

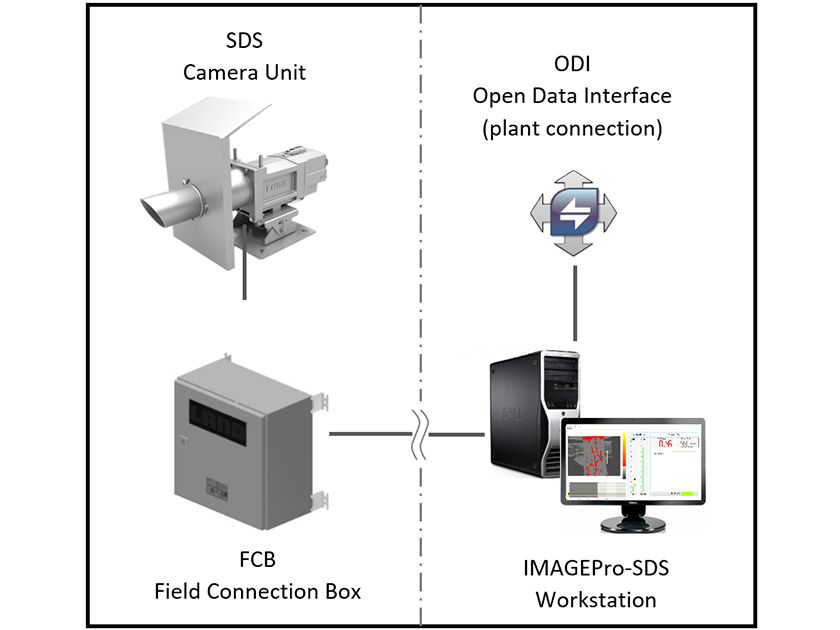

 Slag Detection System and IMAGEPro











CUTTING-EDGE IMAGEPRO-SDS SOFTWARE

Delivering advanced image processing to control, monitor, analyse and capture data from the thermal imager.

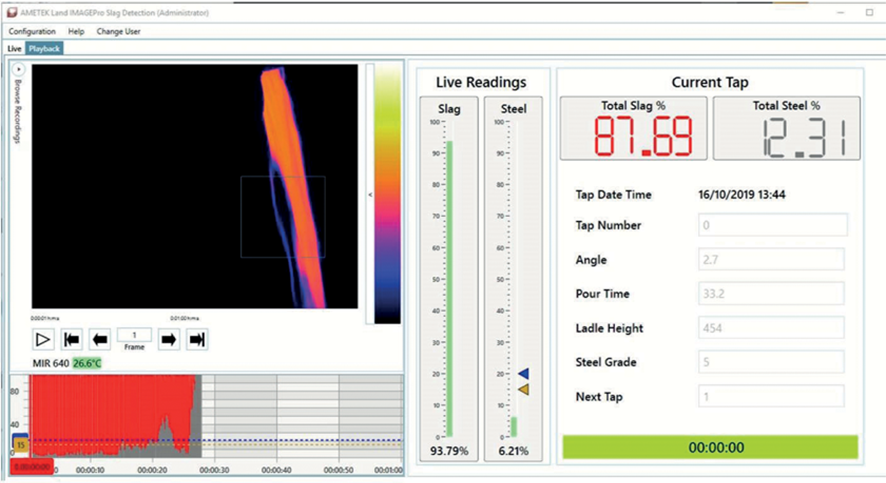

SDS-640 Image Pro 4






The Slag Detection System is AMETEK Land’s definitive solution for monitoring and reducing slag carryover in steel production facilities. It is proven to reduce slag carryover, save money and improve operator safety. Read more here.
