The AMETEK Land LSP-HD line scanner series offers cutting-edge infrared temperature measurement technology for a wide range of industrial applications, including hot and cold rolling mills, tempering and coating lines, flat glass processes, paper and textile industries, rotary kilns, and more.
Equipped with a high-performance processor, the LSP-HD scanners swiftly process measurement data during scanning, achieving 1000 samples at speeds of up to 150 lines per second. The detectors, featuring a rotating mirror element and an internal calibration source, ensure remarkable reliability even in the toughest industrial environments, operating 24/7 with unparalleled measurement homogeneity and accuracy.
Featuring 14 freely configurable measuring zones, the LSP-HD scanners facilitate continuous data acquisition for precise process control. The scanning process generates a highly homogeneous thermal image from temperature profiles, used for visualization, further processing, process control, and documentation.
The LSP-HD scanners operate autonomously through an on board processor, allowing direct connectivity with I/O modules, a PLC, or the advanced scanner process software WCA. For quick and easy configuration and connection to existing process controls, the LSPro CONFIGURATION software is available, offering a user-friendly interface and can be freely downloaded from our website.
SCANNER CONFIGURATION & ALIGNMENT
• Animated 3D scanner visualization and alignment
• Full access to all scanner settings
• Easy to connect scanner heads and I/O modules via Ethernet

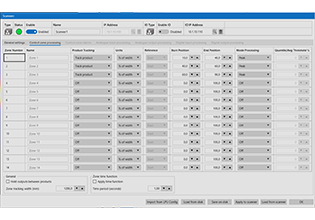

14 ZONE PROCESSING
• Full configuration of up to 14 zones per scanner head, including zone zone/products tracking and alarms
I/O MODULE PROCESSING
• Configuration of connected I/O modules, in- and outputsIncluding time functions, alarms and advanced processing

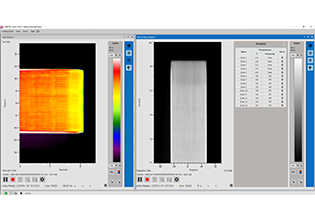

HORIZONTAL & VERTICAL MAPS
• Map Views with Video Recording Option, Zone Value Table and configurable Isotherms
ADVANCED TEMPERATURE PROFILE
• Temperature Profile and Zone View
• Product tracking and wedge detection
• Fully configurable view
• Video recording options
TIME TREND GRAPH
• Multiple scale trend graph
• Full analysis table
• Control section
• Recording options

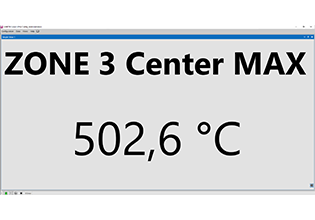

VALUE DISPLAY
• Mutiple simple value display
• Zone Alarm monitoring
• Free configureable
