Tempering Furnace

AMETEK Land Fixed Thermal Imagers & Line Scanners - Tempering Furnace
An integrated solution for high-accuracy temperature measurements in glass toughening plants - independent of surface coatings applied to the glass.
  • Overview +

    Glass Tempering Furnace System meets the challenge of accurately measuring glass temperatures for plants running multiple glass types – even using a variety of coatings, including low-emissivity surfaces.

    Easy to install and use, AMETEK Land’s high-precision technology provides greater quality control, without destructive testing, for a more consistent product. It also prevents overheating, minimising wasted energy and ensuring cost-efficiency.

    By combining our advanced, high-definition LSP-HD linescanner and compact digital SOLOnet thermometer, the system uses dedicated Windows PC software for simultaneous data processing. Configurable alarms can be set to specific process conditions, instantly alerting operators to product quality issues.

    By producing highly detailed glass temperature measurements, independent of coating, Glass Tempering Furnace System is ideal for glass toughening plants across the world.

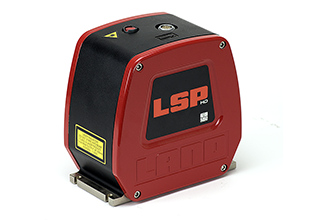

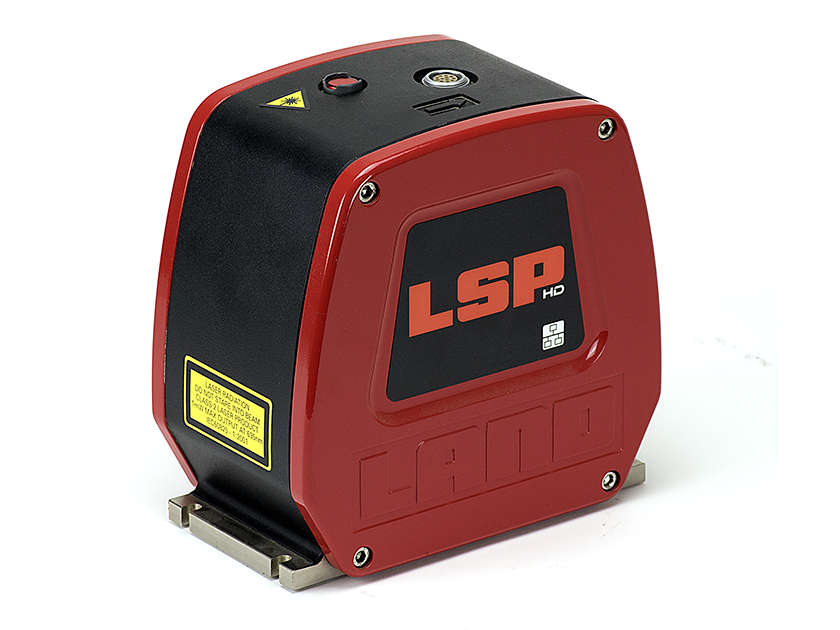

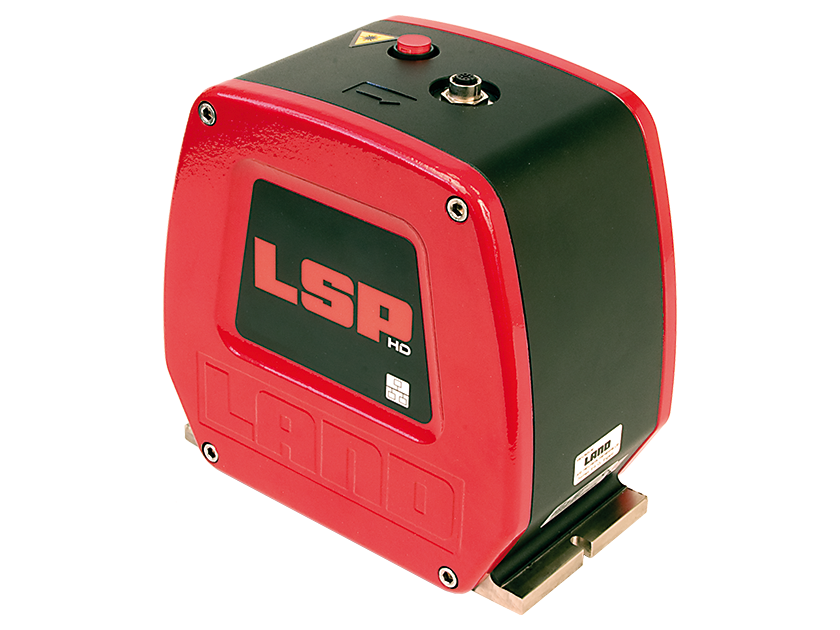

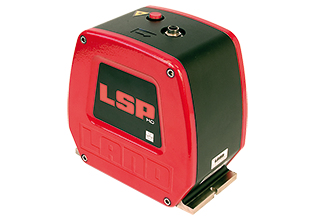

    LSP-HD scans the glass surface from above at 150Hz, with the SOLOnet providing an underside temperature correction measurement. This allows our powerful Landscan WCA software to continually deliver precise results, even when a variety of coatings are used.

    Glass Tempering Furnace System is sealed to IP65/NEMA4 standards ensuring measurement reliability and maximum uptime in industrial environments. An ultra-hard, sapphire scanner window protects the thermometer, ensuring long service life and minimal maintenance requirements.

    A single plug-and-play cable connection reduces linescanner installation costs and makes setup easy. Processed data can be transferred via a simple, cross-platform TCP/IP protocol, for easy connection to the process control system.

    Glass Tempering Furnace System is AMETEK Land’s integrated solution for temperature measurements of multiple glass types.
  • Specifications +

    Linescanner LSP HD-50 LSP HD-52
    Measurement Range: 150 to 750 °C / 302 to 1382 °F  500 to 1100 °C / 932 to 2012 °F
    Spectral Response: 5µm nominal
    Scan Angle:
    80° (software adjustable to 40°)
    Scan Speed: 10 to 150Hz (adjustable in 1Hz increments)
    Measurement Points: 1000 per scanline
    System Accuracy: ±2 °C / 3.6 °F  ±3 °C / 6.4 °F
    Ambient Temperature: 5 to 60 °C / 41 to 140 °F (specified)
    5 to 70 °C / 41 to 158 °F (operating)
    Environmental Sealing:

    Single Point Thermometer Solonet SN5
    Measurement Range: 200 to 1100 °C / 392 to 2012 °F
    Spectral Response: 5 µm
    System Accuracy: 0.35% K
    Ambient Temperature: 5 to 60 °C / 41 to 140 °F (specified)
    0 to 70 °C / 32 to 158 °F (operating)
    Environmental Sealing: IP65 / NEMA 4X
