AMETEK Land Fixed Spot Non-contact Thermometer / Pyrometer - ABT - Aluminium Billet Thermometer
A compact, rugged non-contact thermometer designed for lower temperature industrial processes (Available in the Americas only).

  • Overview +

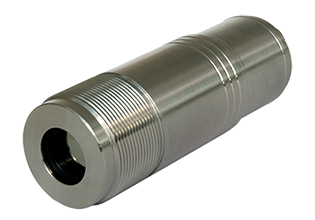

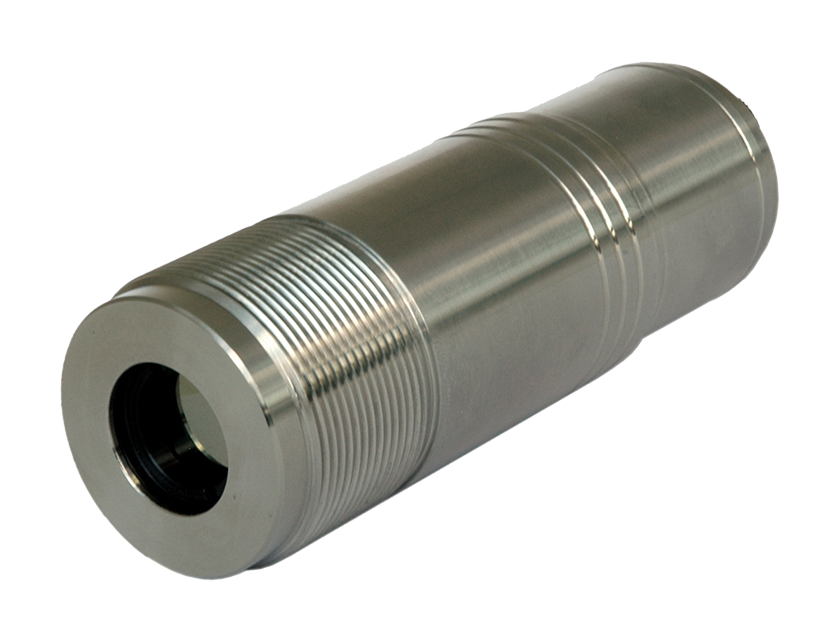

    Designed for the control and process monitoring of lower temperature applications, Sprint 8 integrates AMETEK Land’s reliable measurement into a tough package designed for harsh environments.

    Machined from durable stainless steel to operate in challenging environments, Sprint 8 outputs a stable measurement via a linear 4-20mA loop powered output signal, making it a simple, reliable and cost-effective choice for a range of applications. The digital design allows the span of the instrument to be adjusted anywhere within the overall temperature range of the instrument.

    By combining powerful onboard digital processing with simple operation of measurement parameters and response speed, using the supplied EasySpot Windows interface software, Sprint 8 delivers the flexibility and measurement reliability engineers need.

    Available in eight models offering different focus and optics options, Sprint 8 is ideal for monitoring temperatures spanning -18 °C (0 °F) to 982 °C (1800 °F) in applications in the industrial processing and minerals industries.

    Sprint 8 can be configured for temperature span, emissivity, °F or °C reading and response speed, using the USB interface; in research and laboratory settings Sprint 8 can be operated exclusively with the supplied EasySpot software.

    Sprint 8’s stainless steel tubular body can be further protected from hostile conditions by air purges and installation of optional cooling jackets

    An optional green LED aiming diode makes alignment easy, even when the measurement object is difficult to target. The green LED spot size and location approximates the actual measurement spot size at the measurement distance.

    Sprint 8 is AMETEK Land’s rugged infrared thermometer for process monitoring and control.
  • Specifications +

    Model Range Sprint 8 Sprint 8-L (With Green LED)
       Measuring Range 0-1800 °F 32-1800 °F
       Spectral Range 8 to 14 µm 8 to 14 µm
       Optics 4, 12, 30 and 48 inch focus factory set versions
       Internal Signal Processing Digital
       Emissivity 0.2 to 1.0, adjustable via USB interface
       Measurement Span Adjustable anywhere within range, minimum span 100 °F
       Response Speed (95% energy)  50 ms (min.), adjustable 100 ms to 100 s via USB interface
       Uncertainty 1% of meas. value specified in Kelvin
       Repeatability 0.5 % of meas. value specified in Kelvin
       NETD 0.05 °F
       Output two-wire 4 to 20 mA temperature linear, into 600 Ohm load at 24V
       Interface USB interface (galvanically isolated)
       Aiming Manual  Green LED
       Parameters Adjustable via USB interface and supplied EasySpot software:
    emissivity; response time; Units °F / °C, measurement span
       Power Supply 24 V DC +/- 25%, ripple 500 mV max
    LED: 7 … 30 V DC, <200 mW
       Power Consumption max. 0.6 W (without aiming LED)
       Operating Temperature 0 to +160 °F
       Storage Temperature -4 to +160 °F
       Housing Stainless Steel, IP 65 sealed
       Weight Approx. 1lb
       Dimensions  Thermometer body length 5 inches, threaded 40mm x 1.5
    SPR8 0210
