MWIR

With increasing demand for improved product quality and efficiency, energy saving, predictive maintenance and emission reduction, thermal imaging cameras and systems play an important role in modern and industrial processing.

The new MWIR thermal imager builds on more than 20 years of thermal imaging experience, expanding the market-leading range of LAND thermal imaging family and temperature measurement solutions.

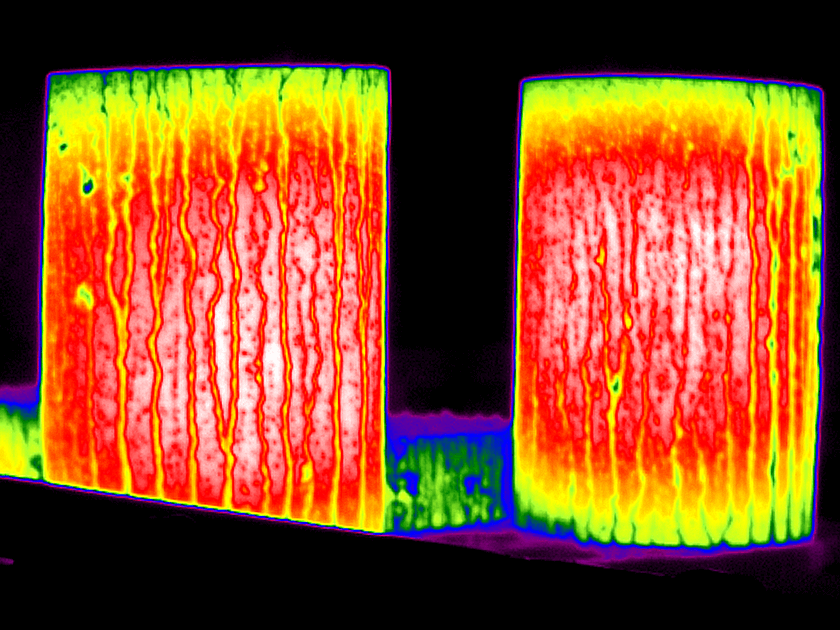

Advanced spectral filtering enables the MWIR-640 to provide clear images through smoke or particulates in high temperature processes, while showing every detail of surface structure in heat treatment applications above 300 °C (572 °F).
The MWIR35-640 uses a broadband 3-5 µm wavelength to provide accurate measurements of temperature down to 100 °C (212 °F).

Three temperature measurement ranges cover applications from melting to final processing.  Three lens options offer a choice of optical field of view, all with motorised focus.

An integrated webserver with multiple I/O options enables the camera to be used autonomously or easily integrated into new or existing process control systems. The webserver provides easy camera access, configuration and remote control, using a standard browser.

The MWIR measures and streams live true-temperature images at up to 60 frames per second, providing high-precision temperature measurements and thermal profiles to continuously control, document, and visualise industrial processes.

SPECIFICATION HIGHLIGHTS
MID-WAVELENGTH:	MWIR-640	MWIR35-640
LOW-TEMPERATURE:		100 to 500 °C / 212 to 932 °F
MID-TEMPERATURE:	300 to 1200 °C / 572 to 2192 °F  500 to 1800 °C / 932 to 3271 °F
Spectral Response:	3.9 μm	3-5 μm
Pixel Resolution:	640 x 480 pixels
Frame Rate:	60 Hz / 7.5 Hz
Optics (FOV):	50°x37°, 25°x19°,12°x9°
Interfacing:	Gbit-Ethernet / PoE
I/O Options:	3x analogue/digital I/O
Smart Functions:	Integrated Webserver
Hazardous Area Compliance:	Ex-Proof Enclosure Available

INDUSTRIAL THERMAL IMAGING
Designed for use in harsh industrial and environmental conditions, the MWIR’s smart, Industry 4.0 capabilities, bi-direction digital interfaces and on-board I/O provide reliable and robust, real-time thermal imaging measurement and imagery in industrial processes

ADVANCED IMAGE RESOLUTION
The pixel resolution of 640 x 480 pixels and the high thermal resolution deliver uniquely clear and detailed thermal images and videos, at up to 60 Hz frame rate. This unmatched image quality supports highly accurate process visualisation and control.

INNOVATIVE SOFTWARE ANALYSIS
Advanced IMAGEPro image and data processing software offers real-time analysis of thermal images, giving users an exceptional level of understanding and control of their process. It also enables monitoring and configuration of up to 16 imagers.

MWIR Thermal Camera

MWIR is part of LAND’s smart thermal imaging solution for a range of industrial applications including automation, process control, slag detection, secondary steel making vessels (e.g. EAF, BOF), melting operations, copper, platinum and others, heat treatment and much more.

IMAGER UNIT
Measurement Range:			MWIR35-640: 100-500 °C / 212-932 °F MWIR-640: 300-1200 °C / 572-2192 °F MWIR-640: 500-1800 °C / 932-3271 °F
Pixel Resolution:			640 x 480 pixels
Pixel Size / Pitch:			17 μm
Spectral Response:			MWIR35-640: 3-5 μm MWIR-640: 3.9 μm
Max Frame Rate:			60 Hz* / 7.5 Hz
Detector:			Uncooled microbolometer
Optic (HFOV x VFOV):			50° x 37° / 25° x 19° / 12° x 9°
Focus Range:			Min 0.3 m to infinity (motorised focus) – (50°) Min 0.5 m to infinity (motorised focus) – (25°)  Min 0.75 m to infinity (motorised focus) – (12°)
Accuracy:			1 % of reading
Noise:			0.5 °C / 0.9 °F RMS above 200 °C (MWIR35) 0.5 °C / 0.9 °F RMS above 500 °C (MWIR, 12° and 25° FoV) 0.5 °C / 0.9 °F RMS above 700 °C (MWIR, 50° FoV)
Dimensions:			80 x 80 x 222 mm (max) / 3.14 x 3.14 x 8.7 in (including lens)
Power Rating:			12 to 24 V DC, +/-10% 12W / IEEE 802.3 at PoE+
Weight:			1.6 kg / 3.5 lbs
Ambient Temperature:			-20 to 55 °C / -4 to 131 °F uncovered (0-95 % humidity, non-condensing) Cooling required > 40 °C in enclosure
Environmental Rating:			IP65/ NEMA 4
Compliance:			EMC (EN 61326-1)
CAMERA SUPPLY & I/O
Digital Connections:			M12 X coded 8way connector: 10/100/1000 Ethernet & IEEE 802.3 at PoE+
Analog Connections:			8 pin binder connector: 2pins - 12-24V DC Power Input 6 pins Functions can be assigned to internal image processing algorithms 1 x 4 -20mA output 1 x 4 -20mA output OR relay output 1 x 4 -20mA input OR digital input OR relay output Camera Web Browser for alignment & internal image processing analog I/O setup
Signal-LED:			Visible on rear of camera instrument 3 x LED - Power / Status, Ethernet Comms & Camera internal temperature
Service:			Water, instrument air for cooling and window purging using optional enclosures
SMART FUNCTIONALITY
Integrated Webserver:			Remote access via Gbit ethernet interface Integrated webserver provides live thermal image
Autonomous Operation:			3 ROI’s and configuration of integrated I/O’s for full autonomous operation
THERMAL IMAGING PSU MODULE
Components & Connections:			Power supply, Gbit Ethernet communications (switch)/ IEEE 802.3 at PoE+, Fibre optic data connection
Environmental Rating:			IP66 / NEMA 4
Size:			380 x 380 x 211 mm / 15 x 15 x 8.3 in
Weight:			15 kg / 33.07 lbs
IMAGE PROCESSING
Integrated Webserver:			Integrated webserver accessible via standard web browser
Software:			ImagePro, ImagePro Application Specific (e.g Asset Monitor)
Workstation:			PC-Worksation (option)
Interfacing:			Open Data Interface, Modbus TCP, Moxa I/O unit
STANDARD ACCESSORIES
Accessories (optional):			Thermal Imaging PSU Modules (UL Approved), Process Imager Power Supply, Industrial Housing Assembly and Purge, Light Housing with Purge, Cables, Brackets, Blower System, Software and Workstation

*60Hz instruments are subject to different export restrictions in different authorities and countries around the world. All sales must be subject to export licence review.
