| EAR |
LPAR |
PAR |
 |
 |
 |
| Electrical Auto-Retraction System |
LPAR - Pneumatic Auto-Retraction System
|
Pneumatic Auto-Retraction
System |
Basic system
|
Recommended retraction
system option
|
Retraction system for use at
Glass Furnaces only |
Electrical & battery driven Auto-Retraction system
|
Pneumatic & air driven Auto-Retraction
system with or without framing
|
Pneumatic & air driven Auto-Retraction system with or without framing.
|
To be used with:
NIR-B-640
NIR-B-656/-2K
MWIR-B-640
(2 or 3 ft. Probe length)
|
To be used with:
NIR-B-640
NIR-B-656/-2K
MWIR-B-640
NIR-B-2K-GLASS
(2 or 3 ft. Probe length)
|
To be used with:
NIR-B-656/-2K-GLASS
(3 ft. Probe length)
|

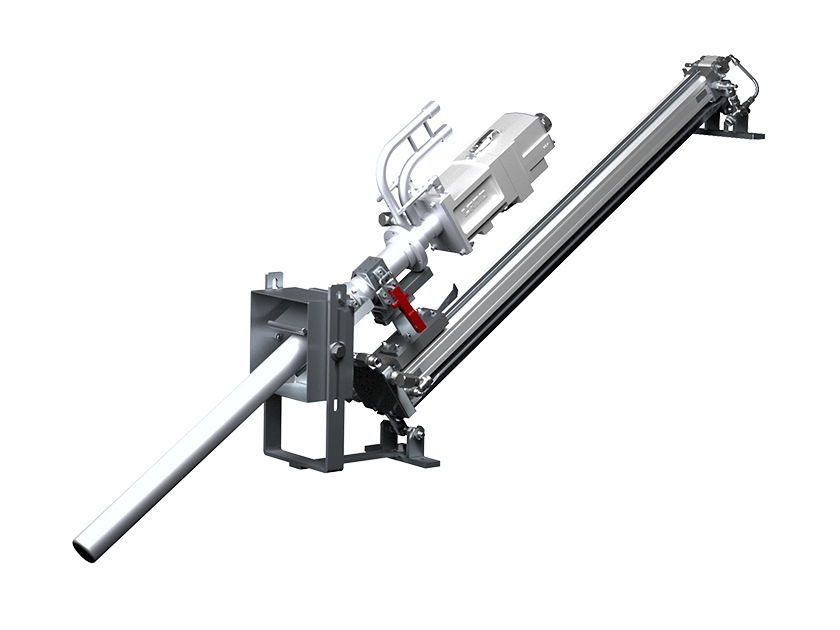

LPAR – PNEUMATIC AUTO-RETRACTION SYSTEM - RECOMMENDED SYSTEM
The LPAR - Pneumatic Auto-Retraction System is the preferred choice for all applications, as it operates using pressured air and electricity alone. It seamlessly integrates with both water-cooled and air-cooled furnace camera systems, making it suitable for a wide range of furnaces and applications. Engineered to endure the most challenging industrial environments, it reliably operates 24/7.

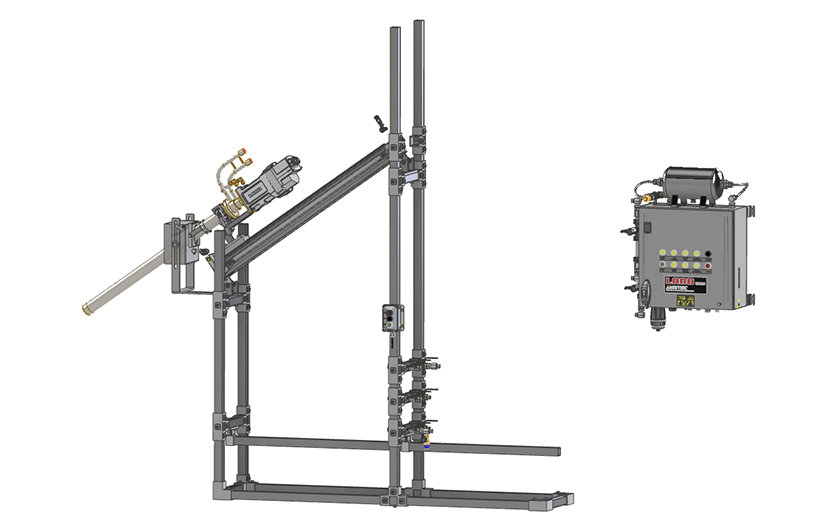

The LPAR can be supplied as part of a complete furnace camera system or as an upgrade to existing systems lacking a retraction mechanism. While the LPAR system comes fully equipped, the frame assembly can either be provided by the customer or included as an accessory from AMETEK Land.

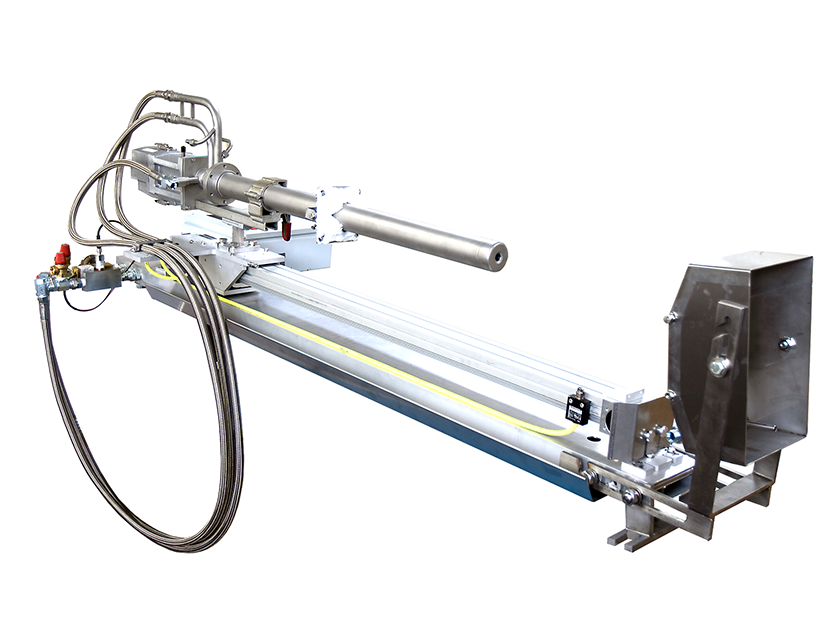

EAR – ELECTRICAL AUTO-RETRACTION SYSTEM
The AMETEK Land Electrical Auto-Retraction System is designed specifically for environments where pressurised air is the sole option for purging. It integrates a battery to guarantee safe retraction in case of air flow loss, power supply interruption, or a high borescope tip temperature alarm.
Please contact AMETEK Land for the best choice for auto-retraction systems.
MOUNTING ANGLES – 0° TO 35°
 |
 |

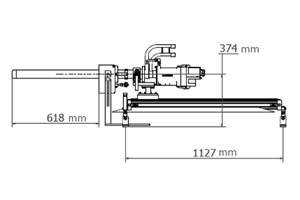

| 0° mounting |

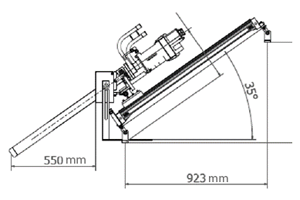

35° mounting |
THE LPAR - PNEUMATIC AUTO-RETACTION SYSTEM INSTALLATION VIDEO
