Fixed Stationary Thermal Imagers

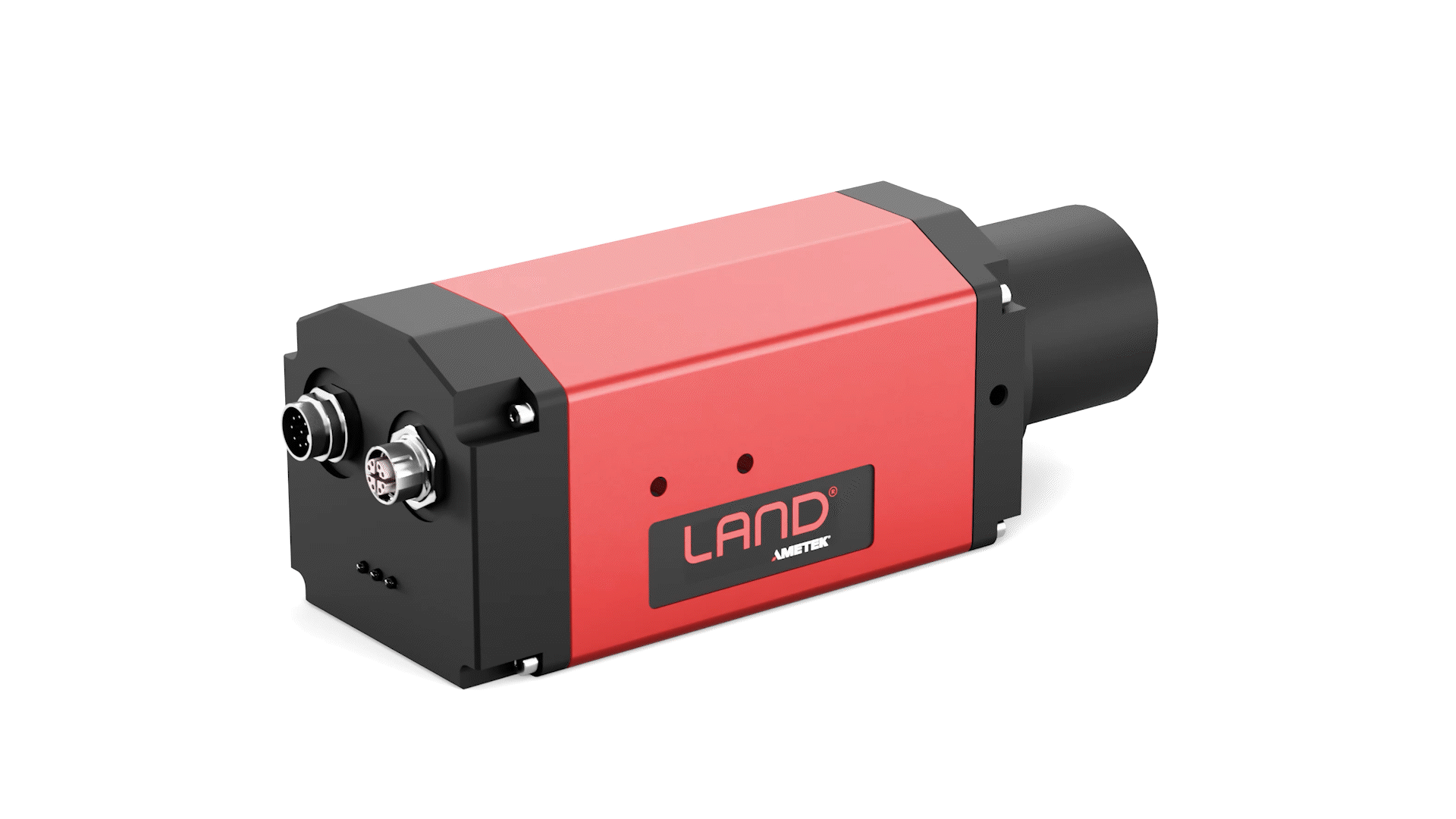

LWIR-640

A long-wavelength thermal imager providing a full temperature measurement range of -20 to 1000 °C (-4 to 1832 °F) in three ranges with a choice of different optics and lenses.

Overview +

With increasing demand for improved product quality and efficiency, energy saving, predictive maintenance and emission reduction, thermal imaging cameras and systems play an important role in modern and industrial processing.

The new LWIR-640 long-wavelength thermal imagers build on more than 20 years of thermal imaging experience, expanding the market-leading range of LAND temperature measurement solutions. They offer a full temperature measurement range of -20 to 1500 °C (-4 to 2732 °F) in four ranges with a choice of different optics and lenses.

An integrated webserver with multiple I/O options enables the camera to be used autonomously or easily integrated into new or existing process control systems. The webserver provides easy camera access, control and setup, using a standard browser.

The LWIR-640 measures and streams live true-temperature images at up to 60 frames per second, providing high-precision temperature measurements and thermal profiles to continuously control, document, and visualise industrial processes.

SPECIFICATION HIGHLIGHTS
LOW-TEMPERATURE:	-20 to 1500 °C / -4 to 2732 °F
LONG-WAVELENGTH:	LWIR 8 to 14 μm
TEMPERATURE RANGE:	-20 - 120 °C / -4 - 248 °F 0 - 500 °C / 32 - 932 °F 100 - 1000 °C / 212 - 1832 °F 150 - 1500 °C / 302 - 2732 °F
Spectral Response:	8 to 14 μm
Pixel Resolution:	640 x 480 pixels
Frame Rate:	60 Hz / 7.5 Hz
Optics (FOV):	50°x37°, 25°x19°,12°x9°, 6°x4°
Interfacing:	Gbit-Ethernet / PoE
I/O Options:	3x analogue/digital I/O
Smart Functions:	Integrated Webserver
Hazardous Area Compliance:	EX d enclosure available

INDUSTRIAL THERMAL IMAGING
Designed for use in harsh industrial and environmental conditions, the LWIR-640’s smart, Industry 4.0 capabilities, bi-direction digital interfaces and on-board I/O provide reliable and robust, real-time thermographic measurement and imagery in industrial processes.

ADVANCED IMAGE RESOLUTION

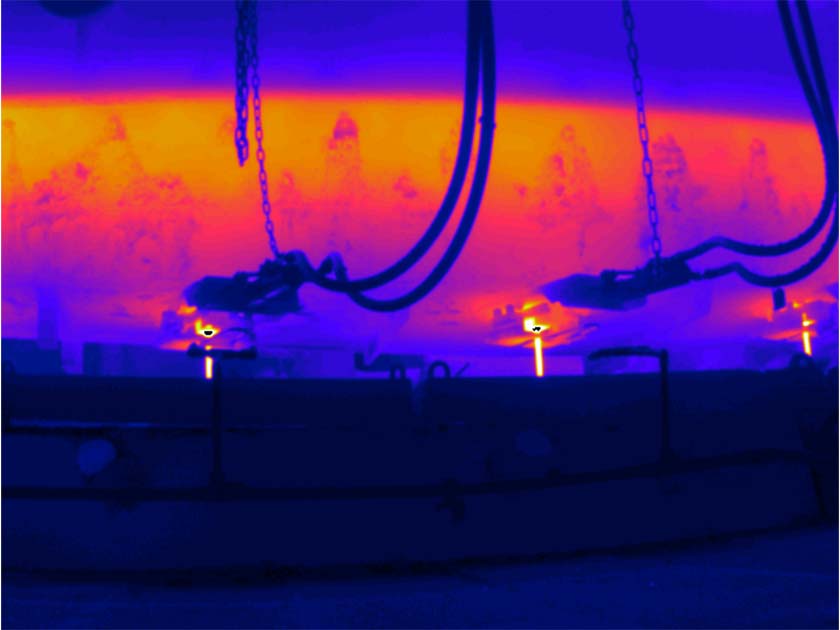

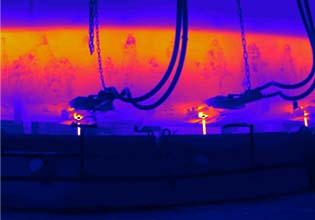

The pixel resolution of 640 x 480 pixels and the high thermal resolution deliver uniquely clear and detailed thermal images and videos, at up to 60 Hz frame rate. This unmatched image quality supports highly accurate process visualisation and control.

INNOVATIVE SOFTWARE ANALYSIS
Advanced ImagePro image and data processing software offers real-time analysis of thermal images, giving users an exceptional level of understanding and control of their process. It also enables monitoring and configuration of up to 16 imagers.

LWIR Camera

LWIR-640 is LAND’s smart long-wavelength thermal imaging solution for a range of industrial applications including automation, process control, machine vision, flare stack monitoring, hot spot detection, medical, critical vessel refractory monitoring, petrochemical, and food and mineral processing.

Specifications +

IMAGER UNIT
Measurement Range:			-20-120 °C / -4-248 °F 0-500 °C / 32-932 °F 100-1000 °C / 212-1832 °F 150-1500 °C / 302-2732 °F
Pixel Resolution:			640 x 480
Pixel Size / Pitch:			17 μm
Spectral Response:			8 to 14 μm
Max Frame Rate:			60 Hz* / 7.5Hz
Detector:			Uncooled Microbolometer

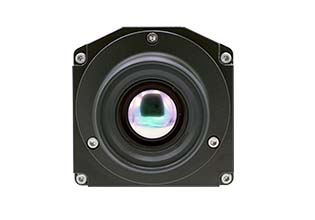

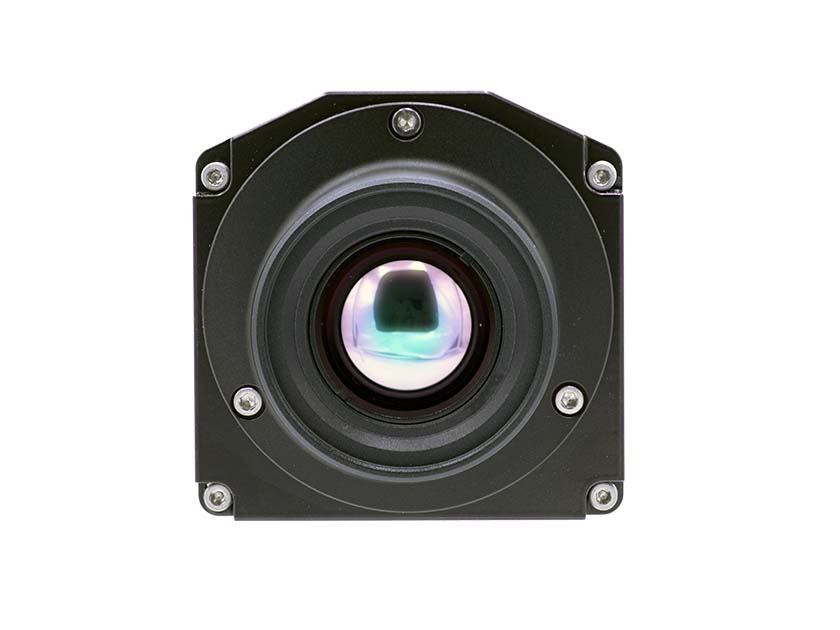

Optic (HFOV x VFOV):			50° x 37° / 25° x 19° / 12° x 9° / 6° x 4° 6° x 4° lens available with 0 to 500 °C and 100 to 1000 °C ranges only
Focus Range:			0.3 m to infinity (motorised focus) – (25° & 50°) 0.75 m to infinity (motorised focus) – (12°) 10 m to infinity (motorised focus) – (6°)
Accuracy:			1.5% or 2 °C of reading
Noise:			0.5 °C / 0.9 °F RMS
NETD:			40 mK (@ 20 °C) (-20 to 120 °C) 7.5 Hz
Dimensions:			80 x 80 x 222 mm (max) / 3.14 x 3.14 x 8.7 in (including lens)
Power Rating:			12 to 24 V DC, +/-10% 12W / IEEE 802.3 at PoE+
Weight:			1.6 kg / 3.5 lbs
Ambient Temperature:			-20 to 60 °C / -4 to 140 °F (0 - 95 % humidity, non-condensing)
Environmental Rating:			IP65/ NEMA 4
Vibration:			Sinusoidal vibration: 3g-pk at 300 Hz. Random vibration endurance: overall GRMS 2.95 10-300 Hz. Tested in accordance with BS EN 60068 standards
Compliance:			EMC (EN 61326-1)
CONNECTIVITY AND SERVICES
Digital Connections:			M12 X coded 8way connector: 10/100/1000 Ethernet & IEEE 802.3 at PoE+
Analog Connections:			8 pin binder connector: 2pins - 12-24V DC Power Input 6 pins Functions can be assigned to internal image processing algorithms 1 x 4 -20mA output 1 x 4 -20mA output OR relay output 1 x 4 -20mA input OR digital input OR relay output Camera Web Browser for alignment & internal image processing analog I/O setup

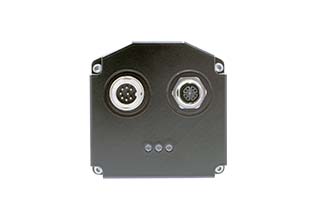

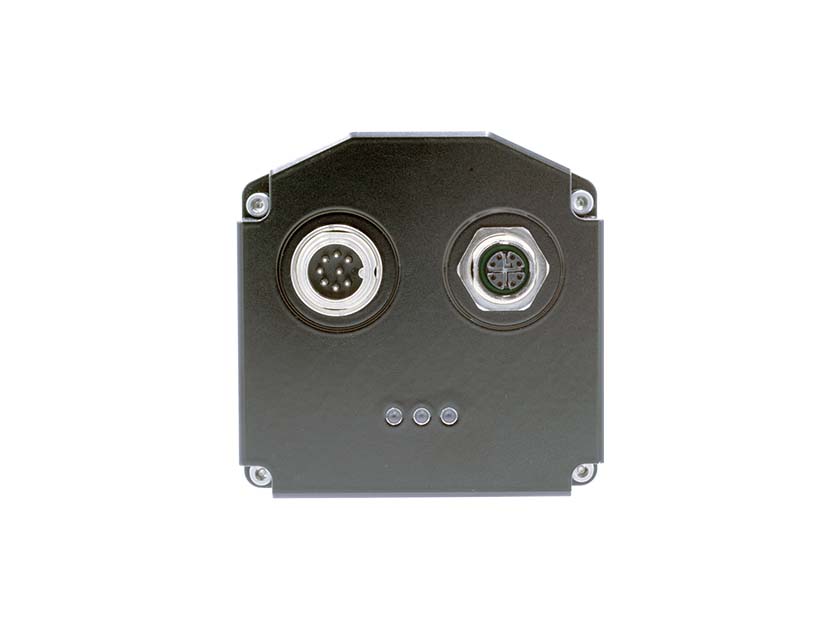

Signal-LED:			Visible on rear of camera instrument 3 x LED - Power / Status, Ethernet Comms & Camera internal temperature
Service:			Water, instrument air for cooling and window purging using optional enclosures
SMART FUNCTIONALITY
Integrated Webserver:			Remote access via Gbit ethernet interface Integrated webserver provides live thermal image
Autonomous Operation:			3 ROI’s and configuration of integrated I/O’s for full autonomous operation
THERMAL IMAGING PSU MODULE
Components & Connections:			Power supply, Gbit Ethernet communications (switch)/ IEEE 802.3 at PoE+, Fibre optic data connection
Environmental Rating:			IP66 / NEMA 4
Size:			380 x 380 x 211 mm / 15 x 15 x 8.3 in
Weight:			15 kg / 33.07 lbs
IMAGE PROCESSING
Integrated Webserver:			Integrated webserver accessible via standard web browser
Software:			IMAGEPro, IMAGEPro Application Specific (e.g Asset Monitor)
Workstation:			PC-Worksation (option)
Interfacing:			Open Data Interface, Modbus TCP, Moxa I/O unit
STANDARD ACCESSORIES
Accessories (optional):			Thermal Imaging PSU Modules (UL Approved), Process Imager Power Supply, Industrial Housing Assembly and Purge, Light Housing with Purge, Cables, Brackets, Blower System, Software and Workstation
AIR QUALITY
Particles > 1 µm diameter:			< 1000 /m³
Water:			< 500 mg/m³
Oil:			< 1 mg/m³

*60Hz instruments are subject to different export restrictions in different authorities and countries around the world. All sales must be subject to export licence review.

Field of View (FOV) +

Optic

2.5m

10m

15m

HFOV x VFOV

Width

Height

FOV
(centre)

Width

Height

FOV
(centre)

Width

Height

FOV
(centre)

Width

Height

FOV
(centre)

Width

Height

FOV
(centre)

6° x 4°

1.0 m

0.7 m

1.6 mm

1.6 m

1.0 m

2.5 mm

12° x 9°

0.22 m

0.16 m

0.3 mm

0.55 m

0.39 m

0.9 mm

1.1 m

0.8 m

1.7 mm

2.2 m

1.6 m

3.4 mm

3.3 m

2.40 m

5.1 mm

25° x 19°

0.44 m

0.33 m

0.7 mm

1.11 m

0.84 m

1.7 mm

2.2 m

1.7 m

3.5 mm

4.4 m

3.3 m

6.9 mm

6.7 m

5.00 m

10.4 mm

50° x 37°

0.93 m

0.69 m

1.5 mm

2.33 m

1.67 m

3.6 mm

4.7 m

3.3 m

7.3 mm

9.3 m

6.7 m

14.6 mm

14.0 m

10.0 m

21.9 mm

Frequently Asked Questions +

Question	Answer
What is the smallest object whose temperature the LWIR can measure accurately?	In general, an accurate temperature measurement requires an area of 3 x 3 pixels, a total of 9 pixels. The size of this object depends on the LWIR’s angle of view and the distance of the object. The minimum object size is approximately where θ is the LWIR’s horizontal field of view and L is the distance between LWIR and the object being measured. For example, if an LWIR with 25° x 19° lens is positioned 5000 mm from and object, the minimum measurable detail will be
Do I need to buy the IMAGEPro software package?	LWIR has a built-in web browser that allows the user to view thermal images and perform simple analyses, such as measuring the peak temperature in a region of interest and output the value on a 4-20 mA interface, or to produce an alarm if the temperature drops below a certain value. These functions are sufficient for many applications. Where greater flexibility and processing power are needed, IMAGEPro is a powerful, flexible PC-based image processing package which allows the user to perform and display detailed analyses of the data produced by LWIR.
Can I install LWIR outdoors?	LWIR is weatherproof to IP66 and NEMA 4 and is rated for operation between -20 and +60 °C so it can safely be installed outdoors. However its operation can be affected by dirt or water drops on the lens, so it is usually best to install it inside the light industrial housing which provides additional protection, including a purged window and a sunshield.
Can I install LWIR in hazardous areas?	LWIR is weatherproof to IP66 and NEMA 4 so it can safely be installed outdoors. However its operation flameproof housing is specifically designed to accommodate the LWIR imager. It has a gridless widow which gives a clear and unobstructed view, and has approvals for Zones 1 and 21 (flammable gases) as well as Zones 2 and 22 (flammable dusts).
What I/O is available?	The LWIR imager itself has a variety of inputs and outputs. High-speed Ethernet Webserver showing live data and basic image processing Modbus TCP/IP for measured and derived data Configurable analogue signals: 4-20 mA output Selectable: 4-20 mA output or relay Selectable: 4-20 mA input, digital input or relay A wide range of additional I/O modules can be connected to the IMAGEPro PC-based image processing software.

Temperature Range +

Optic (HFOV x VFOV)	-20 - 120 °C (-4 - 248 °F)	0 - 500 °C (32 - 932 °F)	100 - 1000 °C (212 - 1832 °F)	150 - 1500 °C (302 - 2732 °F)
6° x 4°	-	Yes	Yes	-
12° x 9°	-	Yes	Yes	Yes
25° x 19°	Yes	Yes	Yes	Yes
50° x 37°	Yes	Yes	Yes	Yes
