Portable Furnace Thermal Imaging System

Portable Furnace Thermal Imaging System

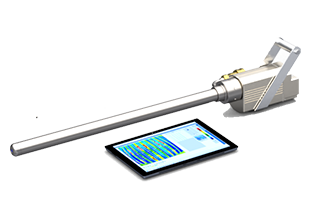

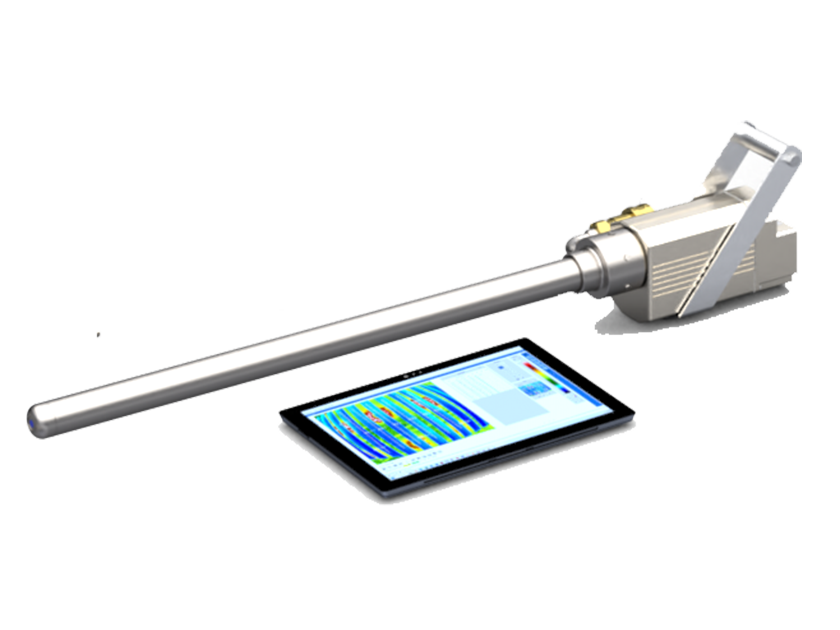

The Portable Furnace Thermal Imaging System is an accessory kit designed for use with the AMETEK Land range of NIR-B/MWIR-B borescope thermal imaging cameras. It can be used for TMT measurements, regular furnace inspections and surveys. This supports on-site monitoring and analysis to prolong furnace/tube lifetimes, optimize burner efficiency, reduce energy consumption, and improve plant profitability.

  • Overview +


    To optimise the operation of furnaces the temperature within the furnace must be measured frequently and the temperature distribution monitored. In addition to using pyrometers to take point measurements, high-resolution thermal imaging systems are also available as fixed installations or as portable units.

    For taking furnace measurements and undertaking surveys, the easy to handle portable furnace thermal imaging system is ideal, when used with AMETEK Land’s borescopes.

    This portable system includes a battery power supply and air connection for purging the imager whilst collecting short clips of the process. Plus, the advanced IMAGEPro thermal imaging software is installed on a Windows® tablet  and enables extensive on-site real-time monitoring and analysis of the thermal data, with detailed evaluation being carried out at a later time.

    The Portable Furnace Thermal Imaging System is an accessory kit designed for use with the AMETEK Land range of NIR-B/MWIR-B borescope thermal imaging cameras. It can be used for TMT measurements, regular furnace inspections and surveys. This supports on-site monitoring and analysis to prolong furnace/tube lifetimes, optimize burner efficiency, reduce energy consumption, and improve plant profitability.

    FULLY PORTABLE SYSTEM
    Easy to handle and operate system for flexible on-site furnace measurements and surveys.

    BATTERY POWERED
    The system provides the power for the imager, while the tablet is used for monitoring, analysing and capturing of data.

    ADVANCED IMAGEPro THERMAL IMAGING SOFTWARE
    Provides a full online view into the furnace during the measurements on-site and enables data capture for further analysis.

    MULTIPLE HIGH-RESOLUTION FURNACE THERMAL IMAGING SYSTEMS
    Combines with market leading advanced thermal imaging borescopes to provide multiple temperature and spectral ranges for different furnace applications and locations.

    PROTECTION & SAFETY
    The easy to handle and carry system can be easily operated by two people, working at a safe distance to the furnace, while the integrated heat shield protects the operator during furnace measurements.

  • Specifications +

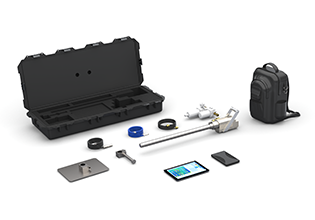

    Components Included: Portable Unit
    Power-Battery Pack
    Instrument Air Filter Unit
    Purging Air Camera Hose (5 m / 197”)
    Camera Power Connection Cable (5 m / 197”)
    Ethernet Camera Cable (5 m / 197”)
    Windows® Tablet - IMAGEPro pre-installed

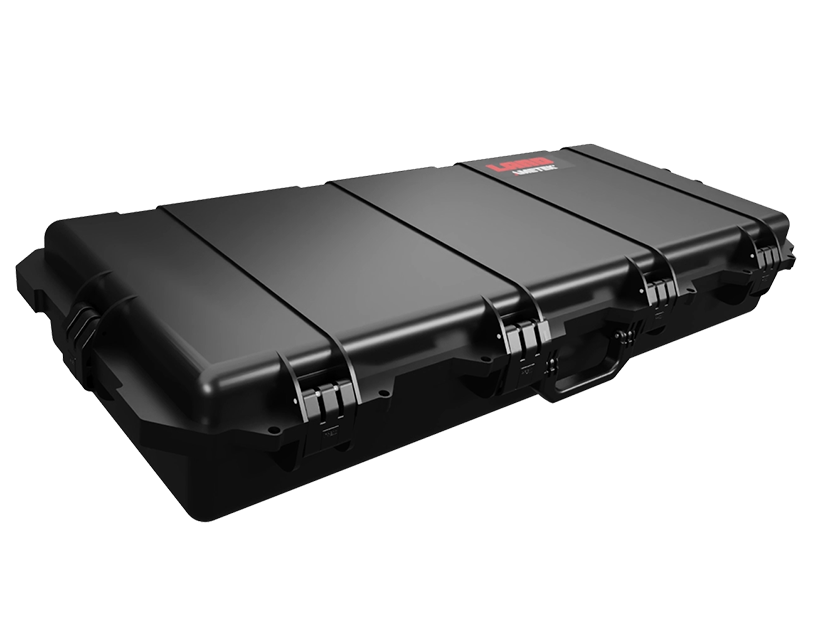

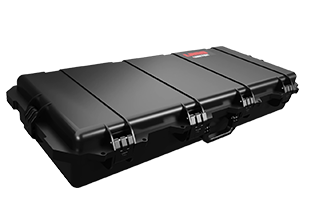

    Flight Case
    Available Models (Camera Combinations): NIR-B-640-600/2000C-90/2
    NIR-B-640-600/2000C-44/2
    MWIR-B-640-300/1200C-90/2
    Portable Unit Dimensions (WxDxH): 482 x 374 x 414 mm / 19 x 14.7 x 16.3”
    (without camera)
    Portable Unit Weight: 15 kg (with imager)
    Imager & Shield Dimensions: 954 x 400 x 250 mm / 37.6 x 15.7 x 9.8 ” (camera and shield assembly )
    Imager Probe Length: 2 ft / 640 mm
    (instrument probe)
    Tablet Dimensions: 314 x 207 x 24.5 mm / 12.4 x 8.1 x 1"
    Tablet Weight: 1.4 kg
    Instrument Air Connection: 1/2" BSP female
    Instrument Air Specifications: Max. air temperature at inlet 40 °C / 104 °F
    400 l/min at 1200 °C / 2192 °F applic. temperature
    This equipment is not designed for permanent installation. Insertion time will depend on site conditions.
    Max. Camera Operating Temperature: 1200 °C / 2192 °F
    Max. Camera Probe Tip Temperature: 85 °C / 185 °F - NIR-B
    60 °C / 140 °F - MWIR-B
    (tip temperature shown in software)
    Battery Capacity: 2 3700 mAh (24V) batteries (one to power instrument and one as a spare)
    Battery Output: 12-24 V DC
    Battery Life: Max. 11 hours continuous usage for each fully charged battery
    Operating Temperature (Ambient): 0 to 60 °C / 32 to 140 °F

  • Software +

    • IMAGEPro
      IMAGEPro

      The innovative IMAGEPro software is an advanced image processing software for controlling, monitoring, analysing and capturing imager data.

      Keep Reading

  • Documentation +

  • Related Applications +

    • Hot Rolling - Reheat Furnace
      Reheat Furnace

      The reheat furnace heats cold billets, blooms or slabs of steel to the correct temperature for rolling, which requires careful thermal control. Solutions: FTS, MWIR-B-640 or NIR-B.

      Keep Reading

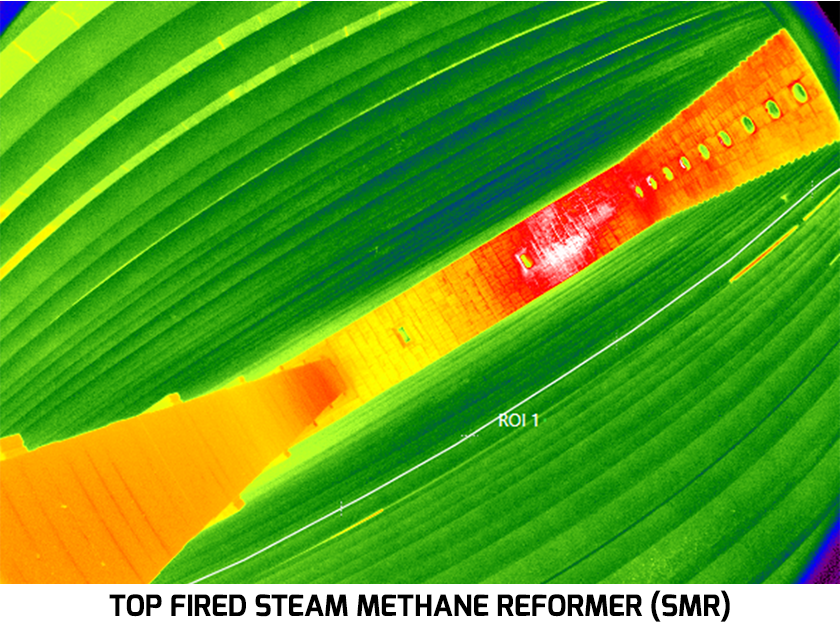

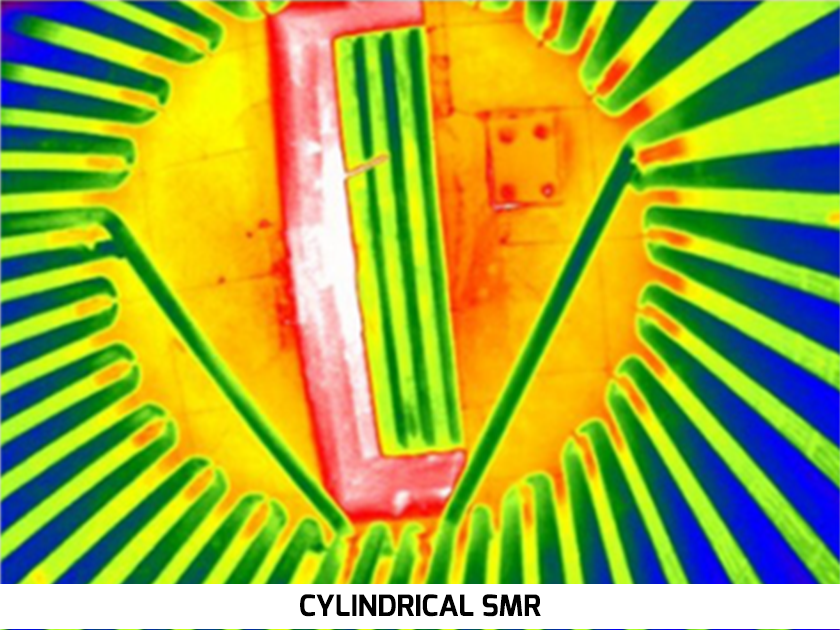

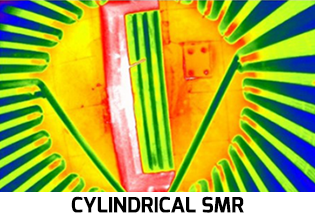

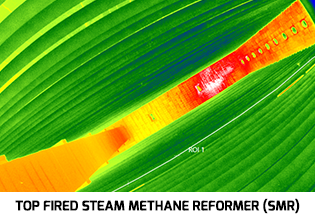

    • Methanol - Primary Syngas Reformer
      Primary Syngas Reformer

      Accurate temperature measurements help reduce fuel costs and help maintain steam reformer equipment, by allowing optimum process control.

      Keep Reading

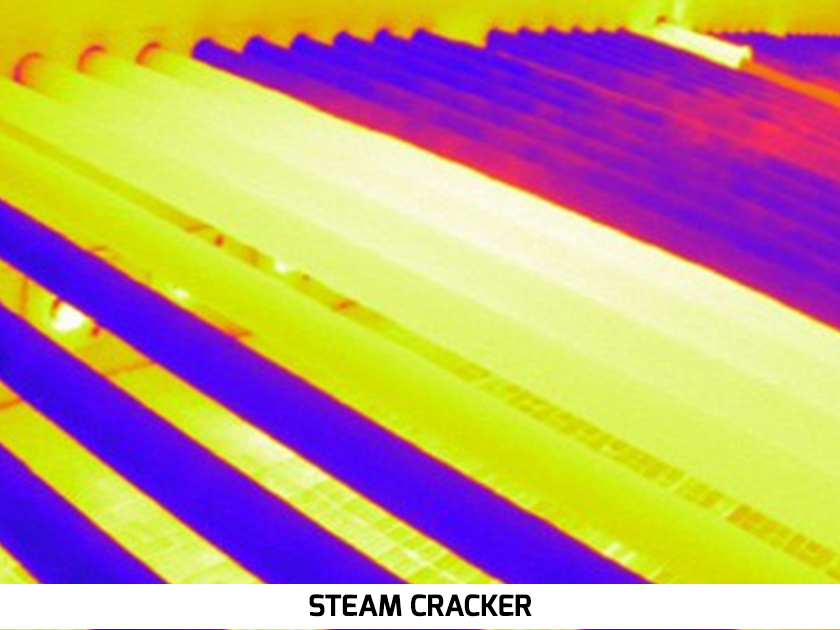

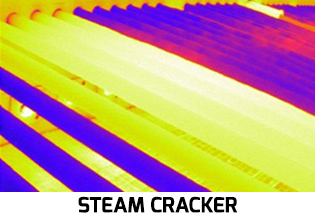

    • Ethylene Cracker - Steam Cracking Furnace
