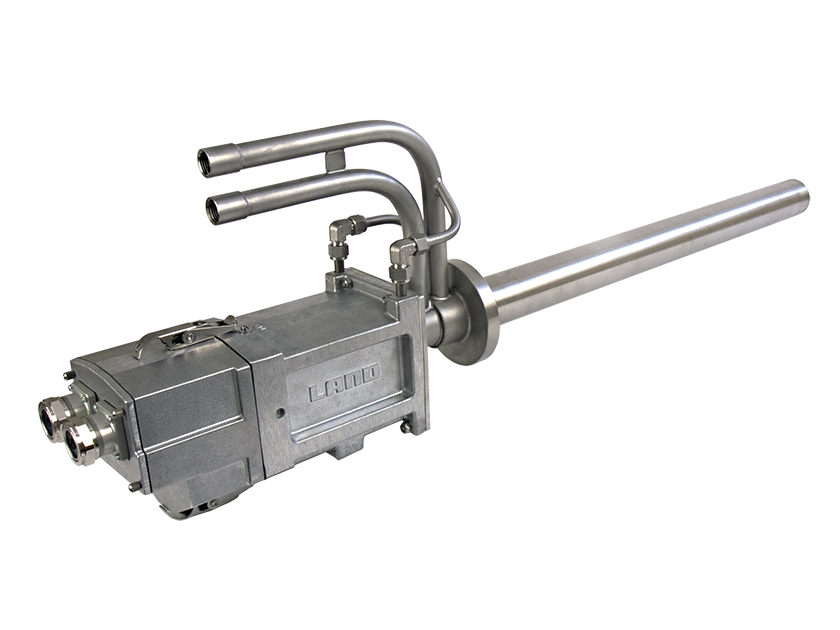

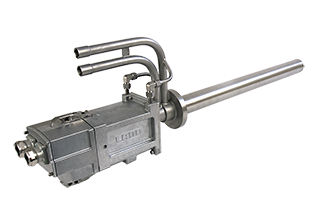

NIR-Borescope-656 & NIR-Borescope-2K

NIR-Borescope-656 & NIR-Borescope-2K
High-resolution short-wavelength radiometric infrared borescope imaging cameras designed for a wide range of continuous process monitoring and control applications.
  • Overview +

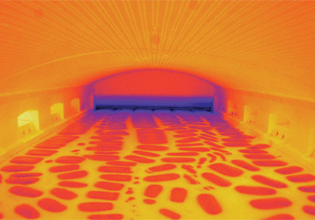

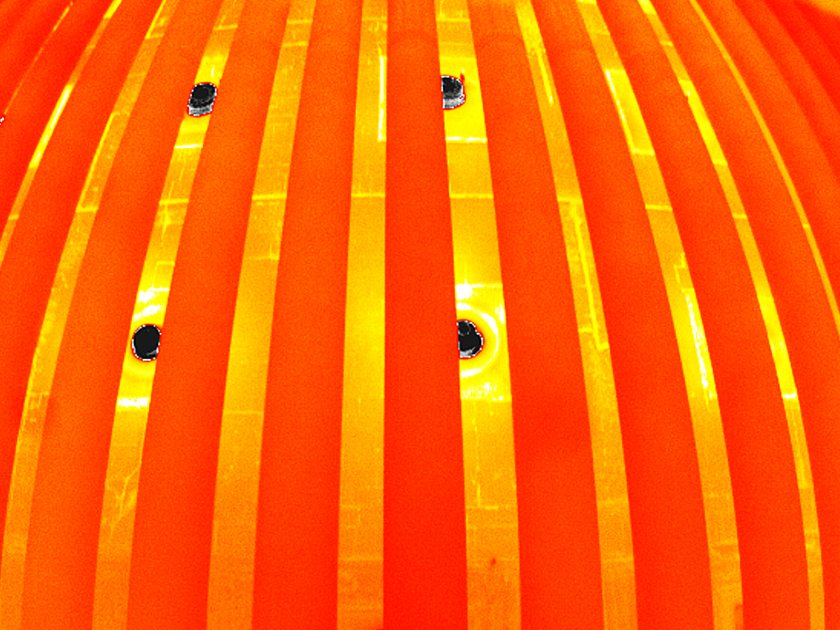

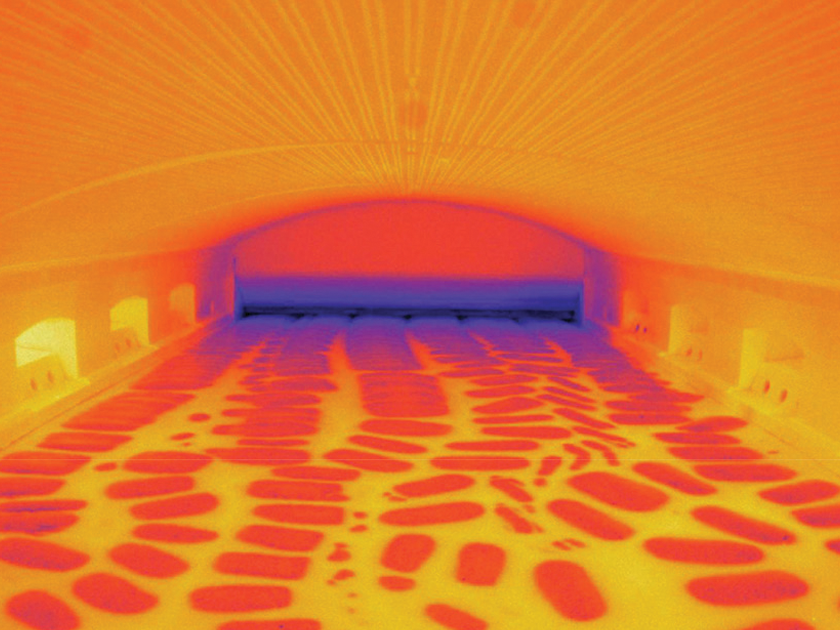

    The NIR-Borescope-656 (NIR-B-656) and NIR-Borescope-2K (NIR-B-2K) are high resolution short wavelength full radiometric infrared borescope imaging cameras, designed to produce continuous live high definition thermal images, at an outstanding pixels resolution of up to 3 million pixels. The cameras can measure temperatures in the range of 600 to 1800 °C (1112 to 3272 °F) and are suitable for a wide range of continuous process monitoring and controlling applications providing high resolution images and temperature readings in large furnaces.

    By providing a cutting-edge clear thermal image unaffected by the furnace hot atmosphere/gases, the NIR-B-656 allows operators to measure from any of the 322,752 pixels, or 2,904,768 pixels for the NIR-B-2K, and optimise furnace temperature to save energy, increase efficiency and reduce emissions.

    With 24/7 coverage via Gigabit Ethernet connection, automated alarm outputs instantly alert the user to any problems or structural issues to ensure furnace efficiency and have complete operational control. Plus thermal anomalies are easy to detect, through continuous monitoring of all positions from the safety of the control room.

    The cameras require only a narrow opening to accommodate a wide field-of-view angle lens tip, a choice of optics (FOVs) are available and provide an extensive measurement area throughout for wide furnace coverage.

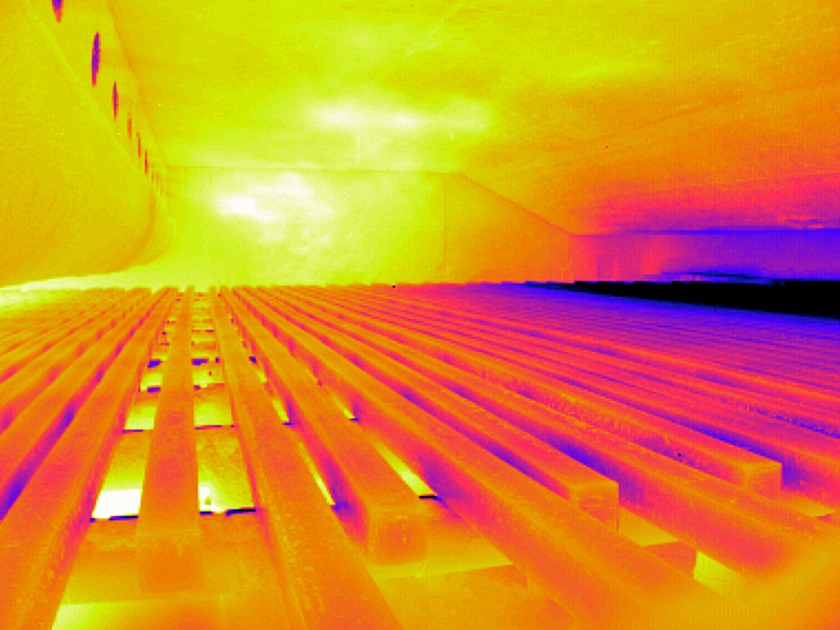

    NIR-Borescope-656 and NIR-Borescope-2K are ideal for use in reheat furnaces, coal fired power boilers, glass melt furnaces, cement kilns and biomass boilers.

     SPECIFICATION HIGHLIGHTS
     HIGH-TEMPERATURE:          600 to 1800 °C / 1112 to 3272 °F
     TEMPERATURE RANGE:  600 - 1000 °C / 1112 - 1832 °F  | 800 - 1400 °C / 1472 - 2552 °F | 1000 - 1800 °C / 1832 - 3272 °F
     Spectral Response:  1 μm
     Pixel Resolution:  656 x 492 pixels | 1968 x 1476 pixels
     Frame Rate:  30 Hz / 15 Hz
     Optics (FOV):  31° x 24°, 95° x 71° | 95° x 71°
     Interfacing:  Gbit-Ethernet
     I/O Options:  I/O-modules and digital interfacing via IMAGEPro

    24/7 FURNACE MONITORING

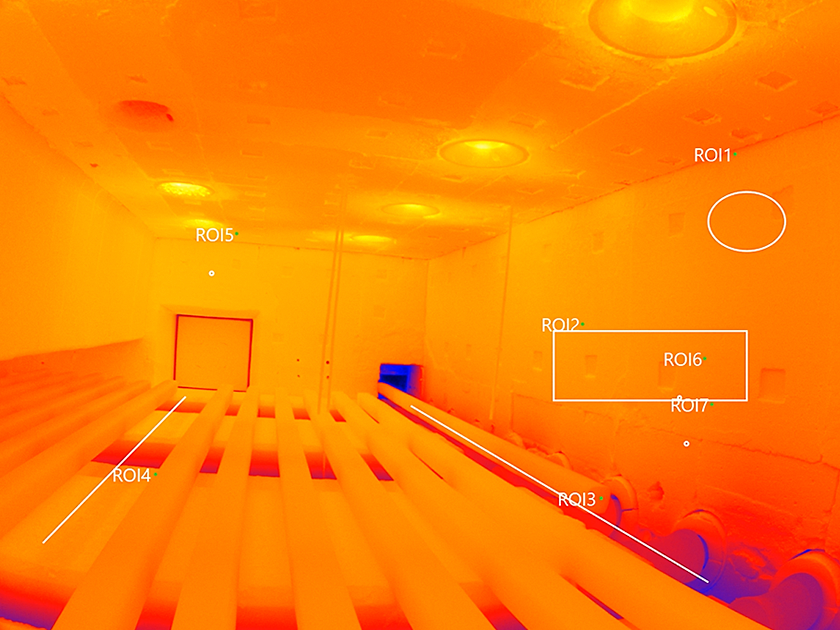

    Continuously monitor the temperature of furnace heating, refractory areas and stock.

    CHOICE OF WIDE ANGLE OPTICS AND PIXEL RESOLUTIONS
    Monitor a very wide range of stock, refractories and burner/heating zones in just one thermal image.

    HIGHLY ACCURATE TEMPERATURE READING
    High-performance system calibration of each camera pixel, with a temperature reading of better than +/- 1%, and an outstanding homogeneity across the whole thermal image, including edges.

    ADVANCED IMAGE PROCESSING SOFTWARE
    IMAGEViewer and IMAGEPro utilities to control, monitor, analyse and capture data from thermal imaging camera.

    ADVANCED FILTERING
    Advanced spectral filtering is unaffected by the hot furnace atmosphere or/and gases to deliver real temperature readings and clear monitoring from furnace interior.

    RELIABLE & SAFE SYSTEM OPERATION
    Designed for harsh and high temperature environmental conditions, plus a range of auto-retraction systems are available to protect against overheating in case of a water cooling and/or air purging loss.

    BACKGROUND COMPENSATION
    Corrects the effect of background reflection online and continuously enables correct stock temperature reading.

    NIR-Borescope-656 and NIR-Borescope-2K are AMETEK Land’s high-definition thermal imaging solutions for temperature monitoring in furnaces, refractory areas and of stock.

  • Specifications +


    CAMERA UNIT NIR-B-656 NIR-B-2K
    Measurement Range:
    600 - 1000 °C / 1112 - 1832 °F
    800 - 1400 °C / 1472 - 2552 °F
    1000 - 1800 °C / 1832 - 3272 °F
    Pixel Resolution:
    656x492
    1968x1476
    Spectral Response: 1 μm
    Frame Rate: 30 fps 15 fps
    Detector:
    FPA - Semiconductor
    Optic (HFOV x VFOV): 31° x 24° / 95° x 71° 95° x 71°
    Optic (IFOV):
    2.53 mrad (95° x 71°) / 0.84 mrad (31° x 24°)
    0.84 mrad ( 95° x 71°)
    Focus Range: 1 m to infinity
    Probe Diameter: Ø 61mm / Ø 2.4”
    Probe Length: 305, 610 or 915 mm (12”, 24” or 36”)
    Mountings: Choice of 3” ANSI 150 RF Flange & Gasket or PN16 DN80 Flange & Gasket with a 12” standpipe
    Protection Window: Sapphire
    Accuracy: 1% of reading (K)
    Repeatability: 1 K
    Dimensions: 254 x 560 x 810 mm* (* or 1120 or 1420 mm); 10 x 22 x 32 in** (** or 44 or 56 in)
    Power Rating: 24 V DC, 4W
    Weight: 15 kg / 33.07 lbs (for 24” variant)
    Environmental Rating: IP65 / NEMA 4
    CAMERA SUPPLY
    Connections: Gbit Ethernet; Local connection interface between camera unit and image processing system
    Service: Water, instrument air, power input, located to the rear of the enclosure
    POWER SUPPLY UNIT (PSU)
    Components: Power supply, Ethernet communications (switch), Fibre optic data connection (option)
    FCB - Environmental Rating: IP65 / NEMA 4
    Size:
    380 x 380 x 211 mm / 15 x 15 x 8.3 in
    Weight:
    15 kg / 33 lbs
    UL Approval:
    Listed to UL508A & CSA-C22.2 No. File Number E499440
    IMAGE PROCESSING
    Software:
    IMAGEViewer & IMAGEPro Advanced Image Processing and Controlling Software
    Workstation: PC-Workstation (option)
    Interfacing:
    Open Data Interface, Modbus TCP, Moxa I/O unit
    ACCESSORIES
    Optional Accessories:
    Power supply, cables, water cooled/purged mounting and tube, software, workstation, auto-retraction systems
  • Field of View (FOV) +


    NIR-Borescope Field of View (FOV)
     Distance HFOV x VFOV 1m  5m 10m  15m  20m
        Width Height  FOV
    (Centre)
    Width  Height   FOV
    (Centre)
    Width  Height   FOV
    (Centre)
    Width  Height   FOV
    (Centre

    Width  Height   FOV
    (Centre)

    NIR-B-2K  95°x 71° 2.1m 1.4m 0.84mm 10.9m 7.1m 4.2mm 21.8m 14.2m 8.4mm 32.7m 21.3m 12.6mm 43.6m 28.5m 16.8mm
    NIR-B-656 95°x 71°   2.1m 1.4m 2.5mm 10.9m 7.1m 12.6mm 21.8m 14.2m 25.2mm 32.7m 21.3m 37.8mm 43.6m 28.5m 50.4mm
    31°x 24°  0.57m 0.43m 0.84mm 2.6m 2.87m 4.2mm 5.73m 4.25m 8.4mm 8.60m 6.38m 12.6mm 11.47m 8.50m 16.8mm
