ATEX Linescanner
The HotSpotIR EX 9000 is an extremely compact, fast-response infrared linescanning system specifically designed to detect emerging hot spots on moving objects and conveyors. It has been certified for use in Zone 20 hazardous areas.
Detecting these developing hot spots and sending an alarm to the process operators prevents costly shutdowns and potential fire risks. However, visual inspection and single-point pyrometers have neither the speed nor the resolution to meet the application demands.
The HotSpotIR EX 9000 high-speed scanning system can detect these emerging hot spots, making 100 high-resolution temperature scan lines every second (100 Hz) and detecting the hottest point in each scan.
The HotSpotIR 9000 Sensor offers a measurement range of 20 to 250 °C / 68 to 482 °F. Protection and cooling enclosures allow for installation in harsh, dirty, and damp environments.

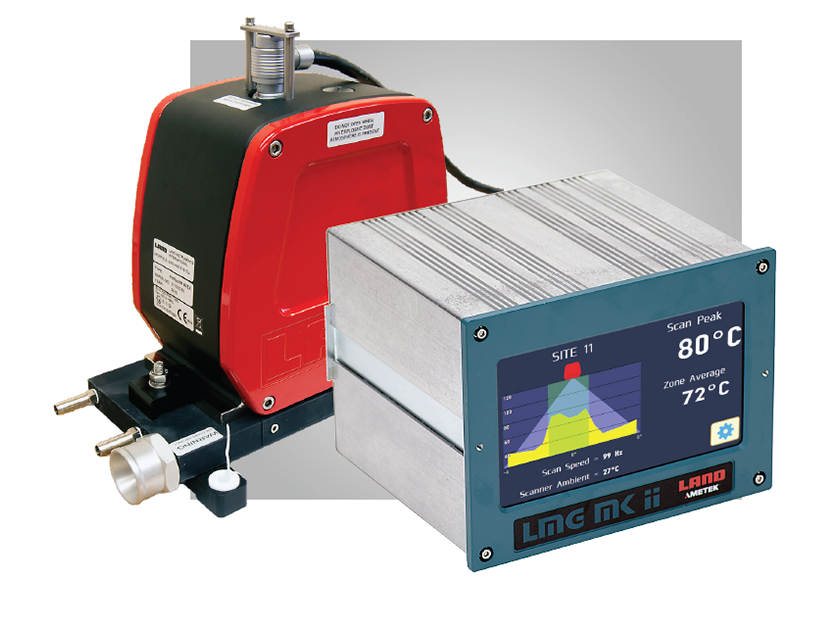

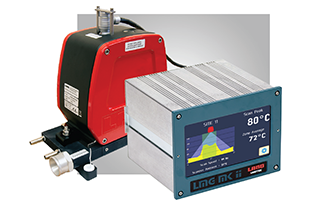

The Landmark Graphic (LMG) MkII 9000 processor is located in a safe area and provides high-speed alarms that alert the control room operator, allowing them to take the correct preventative action.
ACCURATE HOT SPOT DETECTION

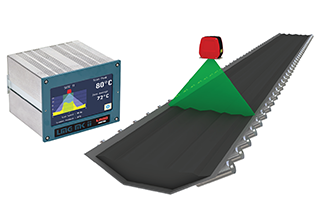

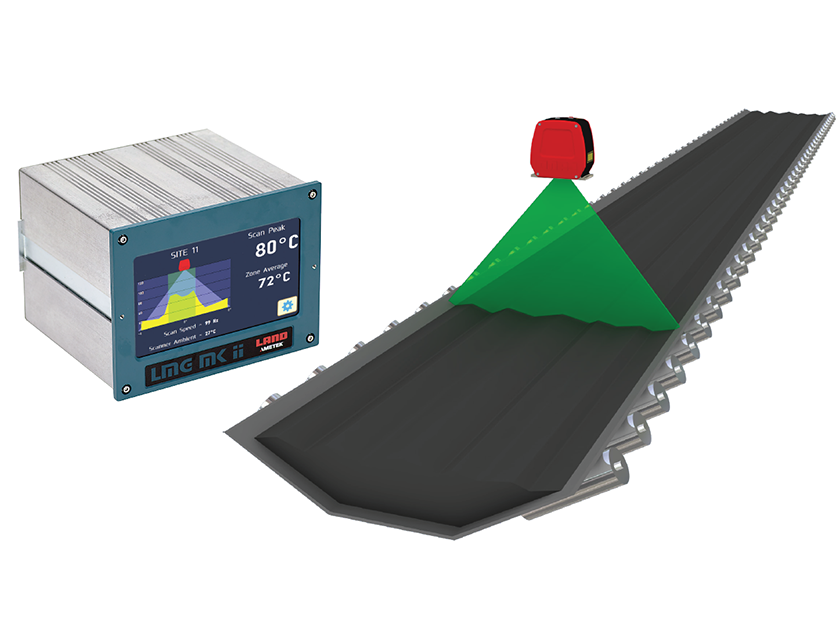

With a wide scan angle of 80°, the HotSpotIR EX 9000 monitors and protects an entire conveyor. Its rapid scan speed of up to 100 Hz provides a fast response and allows temperature tracking of even small hot spots with a field of view of 100:1 and a repeatability of ±0.5 °C / ±0.9 °F.
CERTIFIED FOR USE IN ZONE 20, 21 AND 22 HAZARDOUS AREAS
IMPROVED SAFETY
The HotSpotIR EX 9000’s continuous, accurate and fast monitoring ensures that hot spots are detected and an alarm triggered in a hundredth of a second, allowing the plant operator to respond quickly to a potentially dangerous condition. That means safer employees, reduced damage and downtime risks, and lower insurance costs.
EASY INSTALLATION

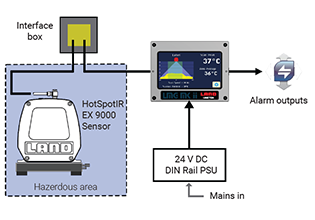

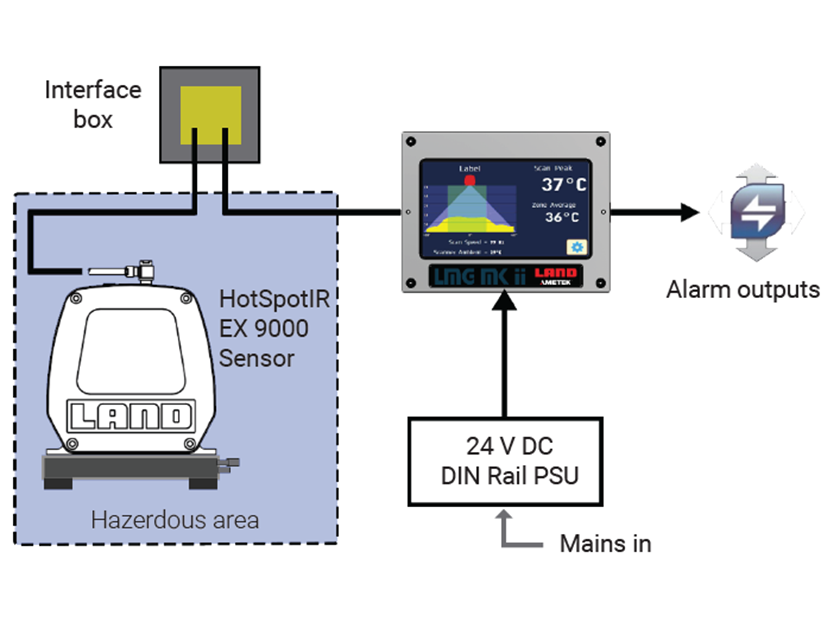

HotSpotIR EX 9000 Sensors are easy to install, with a quick-release mounting bracket for rapid fitting and maintenance. A single cable connects the sensor to the alarm processor.
