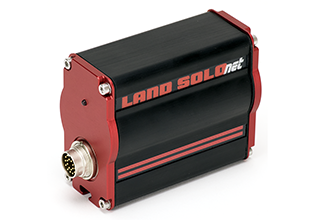

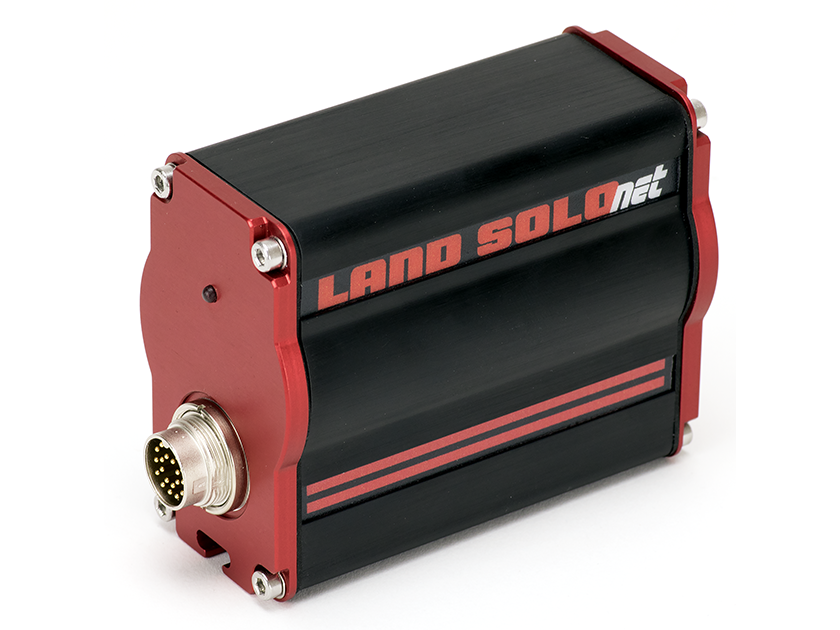

SOLOnet

AMETEK Land Fixed Spot Non-contact Thermometers / Pyrometers - SOLOnet
Flexible, web browser-enabled digital infrared thermometers customisable to a wide range of process control applications in manufacturing and industry.
  • Overview +


    Compact digital infrared thermometers designed for web browser control, the cutting-edge SOLOnet series offer users versatility and value in a wide range of temperature monitoring applications.

    Suitable for stand-alone, single-point or multi-point installations, SOLOnet is easily customised to meet precise measurement and control requirements that help improve product quality, maximise process efficiency and reduce operational costs. SOLONet's compact design and assortment of protective mountings make it ideal for many tight space requirement applications.

    With all parameters viewable via a web browser, SOLONet thermometers display live temperature data on a PC, or with direct messaging via Ethernet or RS485, for easy configuration and responsive control. SOLONet also features industry standard 0-20 or 4-20mA outputs that can be scaled to any span within the overall temperature range of the thermometer.

    Easy to install, easy to monitor, SOLOnet infrared thermometers are suitable for a wide range of manufacturing and processing industries, including Aluminium, Glass, Industrial Processing, Minerals and Steel.

    OUT OF THE BOX FLEXIBILITY
    Available in four models, SOLOnet digital thermometers can be used in standalone, single-point and multi-point installations with individually adjustable temperature ranges, current outputs, emissivity or non-greyness compensation and alarms settings.

    AS MUCH CONTROL AS YOU NEED
    An optional DIN-rail mounted SOLOnet Webserver/Ethernet Interface Unit provides the user with a wide choice of configuration, interconnection, system monitoring and maintenance options.

    RESULTS YOU CAN TRUST
    With cost-effective, reliable measurements, SOLOnet offers the choice of built-in peak picker, track and hold, or average signal processing functions for the accurate monitoring of difficult or complex processes.

    SOLOnet is AMETEK Land’s flexible, compact, web browser-enabled infrared thermometer system.
  • Specifications +


    Model SN11 SN21 SN51 SNR1
       Operating Range 550 to 1750 °C / 1022 to 3182 °F  250 to 1300 °C / 482 to 2372 °F  200 to 1100 °C /  392 to 2012 °F  700 to 1750 °C / 1292 to 3182 °F
       Specified Range 600 to 1750 °C / 1112 to 3182 °F  300 to 1300 °C / 572 to 2372 °F  250 to 1100 °C / 482 to 2012 °F  750 to 1750 °C / 1382 to 3182 °F
       Spectral Range 1µm  1.6µm  5µm  1µm ratio
       Field of View (95% energy) 100:1   100:1   50:1  100:1
       Focusing Fixed, user configurable focus: 250mm/9.8in, 500mm/19.7in, 1000mm/39.4in and infinity
       Output 0 or 4 to 20mA user selectable (isolated 50V)
       Response Time (0 to 90%) 10ms  10ms  50ms  10ms
       Emissivity 0.10 to 1.00
       Non Greyness 0.80 to 1.25
       Resolution (Mid Range) <1K
       Stability 0.2°/°  0.2°/°  0.02%K/K  0.05K/K
       Accuracy (Absolute) 0.3%K  2K  0.35%K  0.6%K
       Time Functions Peak picker, track and hold, and averager
       Alarm Outputs Process high, process low, internal temperature, emissivity/NG signal lost, insufficient signal
       (SNR1 Only) rated to 50V d.c., 0.1A non-inductive, NO or NC – software selectable
       Optional Sighting Laser defining optical axis; class 2, 1mW, 650nm, 120s ON duration, automatic switch-off
       Ambient Limits 5 to 60°C/41 to 140°F specified; 0 to 70°C/32 to 158°F operating
       EMC EN 61326:1999 (immunity and emission)
       Sealing IP65/NEMA 4X
       Vibration 3g (10 to 300Hz)
       Power Supply 18 to 30V d.c. (24V d.c. nominal)
       Optional Accessories Air cooled/purged jacket, water cooled/air purged jacket, air purge and mounting bracket,
    1-axis and 2-axis adjustable mounting brackets, 3m, 15m, 25m prewired cable assemblies,
    Web/Ethernet Interface Unit SN-W/E, d.c. power supply unit, temperature indicator unit LMi
    SoloNet/1112


  • Software +

    • AMETEK Land Software - SOLOnet & IQ Configurator
      SOLOnet & IQ Configurator

      A free Windows PC software utility providing configuration and data visualisation for the SOLONet and IQ ranges of digital infrared thermometers.
